VCSA 6.7 Out of Space (SEAT)

Today I was greeted by the following error message when logging into the VMware vCenter Server also known as VCSA: “Could not connect to one or more vCenter Server systems: https://%fqdn%:443/sdk“. So it was time for a quick write-up on how to resolve this issue.

The issues were already present a couple of hours earlier based on monitoring and logging. For example, Veeam Backup & Replication tried to perform a backup but failed because there were no vSphere Tags available. Veeam Backup & Replication generated the following message “Tag Backup SLA – Bronze is unavailable, VMs residing on it will be skipped from processing.“.

I’m running a VMware vCenter Server as in a VCSA 6.7 appliance and it has an embedded Platform Services Controller. The exact version of the appliance was at the moment of the issue “6.7.0.32000 – Build 14070457“.

Could not connect to one or more vCenter Server systems:

At first glance everything looks fine, the web-interfaces are online, authentication is working but after login, the following message appears “Could not connect to one or more vCenter Server systems: https://%fqdn%:443/sdk“. None of the pages are displaying any content. Here is a screenshot:



After performing a simple reboot nothing had happened, the result was the same. So it was time to dig deeper. Luckily the reboot did trigger a new event in the Appliance Management Page (5480). It appeared that the /storage/seat disk had filled up. The alert that popped-up was “File system /storage/seat is low on database storage space. Increase the size of disk /storage/seat or decrease the data retention.” Here is a screenshot:



Increasing Disk Space

After finding the error message it appeared to be an easy fix. Here is an overview of the commands I used. The commands are also usable for expanding one of the other VCSA virtual disks.

Keep in mind: before increasing disk capacity make sure you have a backup or snapshot available.

It this case we are going to expand this /storage/seat volume. The seat volume is responsible for Stats, Events, Alarms, and Tasks (SEAT) for VMware Postgres (Database).

# Step 01: Connect with the vCenter Server with an SSH Session (use for example Putty).

# Step 02: Login with the root account (root/your-password).

# Step 03: Enable the shell
shell

# Step 04: Run the command to verify the current disk space:
df -h

# Step 05: Increase disk capacity with the Host Client because the vCenter Web-interface is not working ;) (see screenshots)

# Step 06: Run the disk expansion command, the expected output should be: VC_CFG_RESULT=0
vpxd_servicecfg storage lvm autogrow

# Step 07: Verify the disk again, the disk should be bigger!
df -h

# Step 08: Reboot the VCSA
reboot

# Step 09: Verify the working of the VCSA Appliance after reboot.

Here is a collection of screenshots of me performing the procedure.

Conclusion

VMware made it easy for the system administrators to identify the issue and quickly expand the virtual disk from the vCenter Appliance. This is a huge improvement compared to the past. The only thing you need to watch out for is the number of virtual disks connected to the VCSA. If you do not watch out you could expand the wrong disk.

The reason that the disk filled up was caused by two things in my case. 1) I created and destroyed lots of virtual machines in the days before the incident. 2) The VCSA is configured as a tiny footprint so that is why the disks are relatively small.

So this was the write-up! If you got any comments or questions please respond in the section below.

Share this:

vSphere 6.7 Convergence Tool: Failed to get vecs users and permissions

Last week I was converting a vSphere 6.7 Update 1 environment from external PSC to embedded PSC. After a couple of seconds running the conversion, it ended in an error message (Failed to get vecs users and permissions).

The customer was using the latest available vCenter 6.7 update 1 release available at this point vCenter Appliance 6.7 U1b (11727113). The environment consists of one Platform Services Controller (PSC) and one vCenter Server (VC) and a couple of VMware ESXi 6.7 Update 1 hosts.



Error Message

The error message in my PowerShell window displayed the following error message. Not really the best message (possible resolution is []) but it pointed me in the right direction.

### PowerShell output from vcsa-util.exe
2019-05-07 11:07:58,538 [loggable.py:102]: ================ [FAILED] Task: MonitorPSCDeployTask: Running MonitorPSCDeployTask execution failed at 11:07:58 ================
2019-05-07 11:07:58,553 [loggable.py:102]: Task 'MonitorPSCDeployTask: Running MonitorPSCDeployTask' execution failed because [ERROR: Converge Process Failed!], possible resolution is []
2019-05-07 11:07:58,553 [loggable.py:102]: ================================================================================
2019-05-07 11:07:58,631 [taskflow.py:943]: <MonitorPSCDeployTask - com.vmware.vcsa.installer.converge.monitor_psc_deploy(FAILED)> in <ConvergeTaskFlow - converge(FAILED)> status changed to: FAILED
2019-05-07 11:07:58,694 [taskflow.py:641]: Execution attempt 1 for Task <MonitorPSCDeployTask - com.vmware.vcsa.installer.converge.monitor_psc_deploy(FAILED)> FAILED with exception: ERROR: Converge Process Failed!
2019-05-07 11:07:58,694 [taskflow.py:672]: Finished executing <MonitorPSCDeployTask - com.vmware.vcsa.installer.converge.monitor_psc_deploy(FAILED)> and its status is FAILED
2019-05-07 11:07:58,694 [taskflow.py:675]: <ConvergeTaskFlow - converge(FAILED)> overall status is now FAILED

Inside the “converge_mgmt.log” logfile the following error was displayed see output below. The log file can be found on the following location on your local system: “C:\Users\User\AppData\Local\Temp\vcsaCliInstaller-2019-05-07-11-25-6pn5b67r\workflow_1557228307149\converge\converge_mgmt.log“. Keep in mind, the file path is dynamic and I was using Microsoft Windows.

2019-05-07T11:07:46.688Z ERROR converge Failed to get vecs users and permissions. Error: {
    "componentKey": null,
    "problemId": null,
    "detail": [
        {
            "id": "install.ciscommon.command.errinvoke",
            "localized": "An error occurred while invoking external command : 'Command: ['/usr/lib/vmware-vmafd/bin/vecs-cli', 'entry', 'getcert', '--store', 'APPLMGMT_PASSWORD', '--alias', 'location_password_default', '--output', '/root/velma/old_certs/APPLMGMT_PASSWORD.crt']\nStderr: Error: No certificates were found for entry [location_password_default] of type [Secret Key].\nvecs-cli failed. Error 87: Operation failed with error ERROR_INVALID_PARAMETER (87) \n'",
            "translatable": "An error occurred while invoking external command : '%(0)s'",
            "args": [
                "Command: ['/usr/lib/vmware-vmafd/bin/vecs-cli', 'entry', 'getcert', '--store', 'APPLMGMT_PASSWORD', '--alias', 'location_password_default', '--output', '/root/velma/old_certs/APPLMGMT_PASSWORD.crt']\nStderr: Error: No certificates were found for entry [location_password_default] of type [Secret Key].\nvecs-cli failed. Error 87: Operation failed with error ERROR_INVALID_PARAMETER (87) \n"
            ]
        }
    ],
    "resolution": null
}
2019-05-07T11:07:46.706Z INFO converge Cleanup successful with partial flag = True.


Solving the issue

After searching on Google on the string “ERROR converge Failed to get vecs users and permissions“. I got a hit on a VMware KB article. The VMware article can be found below and explained what was going wrong.

The solution is very simple… remove the vCenter Backup Schedule in the VAMI (VMware Appliance Management Interface):

Procedure:

  1. Log into the vCenter Server Appliance Management Interface (https://%vcenter-fqdn%:5480)
  2. Login with the root account.
  3. Navigate to the Backup view
  4. Next to Backup Schedule, click the Delete button to delete the current backup schedule
  5. Attempt the convergence process again!
  6. Once the convergence is complete, re-create the backup schedule. See Schedule a File-Based Backup for more information on creating a backup schedule.

Community Feedback

I got the following feedback on this article after publishing:

  • Update 08-04-2019: David Stamen reached out to me on Twitter with the response: This was fixed in #vSphere67U2.

Sources

The following websites were very usefull for troubleshooting this issue:

Share this:

vSAN: PBM error occurred during PreCloneCheckCallback

Lately, I encountered some issues related to VMware vSAN in my Lab environment. The error message that was popping up all the time was “PBM error occurred during PreCloneCheckCallback“.

So how did the problem occur? First, we start with some background information. My Lab environment is powered-on when needed and powered-off when not needed. This is, of course, a little bit different than a production 24×7 environment that you have in your datacenters worldwide.

The environment was booted successfully at first glance. We are talking about Domain Controllers, vCenter Server, VMware NSX-V, nested ESXi Hosts and vRealize Automation. When I started deploying virtual machines with a vRealize Automation (vRA) based on blueprints with vSphere Templates issues started to occur.

vRealize Automation was failing on the provisioning task and was cleaning up the deployment because of the failed state (default behavior). So it was time to dig into the underlying infrastructure.



Environment

When the issue occurred the following software versions were used in my lab environment:

  • VMware vCenter 6.5 Update 2B
  • VMware vRealize Automation 7.3.1
  • VMware ESXi 6.5 Update 2
  • VMware vSAN 6.6

Error message(s)

Here is all the information that can be found in various locations surrounding the issue.

Error message: Screenshots

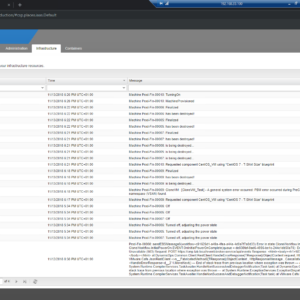

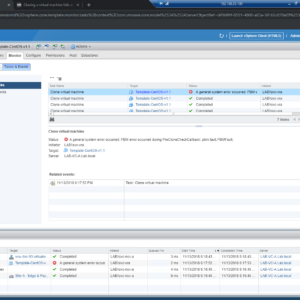

Here are the screenshots, the first one is from VMware vCenter and the second one is from vRealize Automation. As you can see there is clearly a problem.

Error message: vRealize Automation

Here is the vRealize Automation log entry related to the VMware vSAN issue:

Error in Execute DynamicOps.Common.Client.HtmlResponseException: Service Unavailable (503)

Error message: vCenter Server

Here is the VMware vCenter log entry related to the VMware vSAN issue:

A general system error occurred - PBM error occurred during PreCloneCheckCallback (2118557)

Solution

The solution is quick but is more like a quick fix because it comes back every time I start up my lab environment.

Procedure:

  • Open a web browser.
  • Navigate to your vCenter Server URL (https://%vc%/vsphere-client).
  • Login with a user that has administrator credentials (administrator@vsphere.local).
  • Navigate to Hosts & Clusters > Select the vCenter Object.
  • Click on the Configure tab.

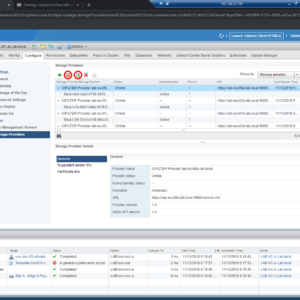

  • Click on the Storage Providers.
  • Click on the following two buttons:
    • Synchronizes all Storage Providers with the current state of the environment.
    • Rescan the storage provider for new storage systems and storage capabilities.
  • After pressing the buttons, you don’t see any tasks running on the vCenter Server (expected behavior). After 5 seconds everything should be working and provisioning should be possible.

Share this:

Deployment of VMware vCenter Server 6.7 Update 1

In this blog post, we are going to deploy VMware vCenter 6.7 Update 1 in my Lab environment. The deployment is fully covered with all the additional notes required to perform a successful installation, migration or upgrade. I also added some guidelines for designing your environment.

Now that vSphere 6.7 Update 1 is available since the announcement on VMworld 2018 US, it is a good time to start looking at vSphere 6.7 instead of vSphere 6.5.

Why should you look at vSphere 6.7 you might ask? vSphere 6.5 is still running like a charm! Yes you are correct but… there are a couple of items to consider:

If you are familiar with the VMware vCenter 6.5 graphical deployment it has been improved in VMware vCenter 6.7. In the past it was a web-based wizard, with 6.7 it is a binary executable. This means a lot faster and better-responding interface and it removes the browser dependency and browser plug-in on your workstation.



Checklist

The checklist items can be verified, days or hours before the initial deployment. If you don’t have a plan before installing, migrating or upgrading things will turn out ugly…

With the checklist, you can determine if your environment is ready for vSphere 6.7 Update 1. It’s about checking and validation your current software and hardware and talking to your vendors about compatibility.

I have also added some design decision ideas. Because you can choose to install, upgrade or migrate without looking at your current architecture but maybe it is time to update your current architecture (design).

  • Make sure that all connected/used VMware products are compatible like (vRealize Automation / vRealize Orchestrator / vRealize Operations Manager / VMware Horizon and the list goes on). This can be verified on the VMware Product Interoperability Matrices page.
  • Make sure that all third-party products are compatible like (Backup & Replication software / Storage vendor software).
  • Determine the correct sizing for your environment. How many virtual machines and ESXi Hosts are going to be running underneath this vCenter Server. These figures determine your vCenter Server size.
  • An embedded Platform Services Controller (PSC) is the way to go in the future. An external Platform Services Controller will not be available anymore in the future.
  • Where is Windows? Please read this article from more than one year ago. Please do not deploy a vCenter Server on Windows. This is a thing of the past.
  • Verify the Hardware Requirements for the vCenter Appliance (depending on your chosen size and internal or external PSC).
  • Do you deploy against an ESXi Host or a vCenter Server?
  • Is your ESXi host hardware compatible with vSphere 6.7 Update 1?

Preparation

The checklist is completed and you have determined that everything is working or is acceptable to continue. Let’s start with some basic stuff that is required:

  • Read the release notes (VMware vCenter Server 6.7 Update 1 Release Notes).
  • Download the latest release from the VMware website.
  • Create firewall rules for your new vCenter Server.
  • Create forward and reverse DNS records in your DNS Server.
  • Register your IP information in your IPAM system.
  • Save your passwords in your Password Management system (Appliance password / SSO password).
  • Have a workstation ready to perform the deployment with sufficient network access and administrative rights.

Deployment

Let’s start the deployment of VMware vCenter 6.7 Update 1. I have chosen for a clean installation of VMware vCenter 6.7 Update 1. I have chosen for an embedded Platform Services Controller (PSC). Based on my total amount of virtual machines and ESXi Hosts I have selected a “Small” installation footprint.

The new deployment process for vCenter Server 6.7 Update 1 consists out of two stages, one is the deployment stage and one is the setup stage.

The first part is mainly responsible for delivering the full appliance with the operation system, network settings, and installation application bundles. The second part is configuring the applications that are running on the vCenter Server. A total installation takes about 45 minutes to complete.

Procedure:

  1. Mount the vCenter Server media (iso file).
  2. Navigate to the following path “X:\vcsa-ui-installer\win32\” (X stands for the CD-ROM drive label).
  3. Run the following application “installer.exe“.
  4. Follow the wizard, I have uploadedall screenshots for reference.

Stage 01 – Deployment

Here are the images of the first stage of the deployment of VMware vCenter 6.7 Update 1. I have no issues to report everything was working fine on the first try!

Stage 02 – Setup

Here are the images of the second stage of the deployment of VMware vCenter 6.7 Update 1. This part was also bug-free, so it was a good deployment.



Configuration

After a successful deployment of the VCSA appliance, you need to configure at least some items to get vCenter Server production ready. The items listed below are a basic set of the most common items I see in the field:

  • Install the vCenter Server License.
  • Active Directory.
  • Assign rights & permissions.
  • Generate and installation of SSL Certificates.
  • Connect the required VMware products and third-party systems.
  • Create a datacenter object.
  • Create a cluster object.
  • Create a distributed switch.
  • Join ESXi Hosts to the newly created cluster.

Lab Environment

So how does my Lab environment look like?

  • VMware vCenter 6.5.0 Update 2. The target for the vCenter 6.7.0 Update 1 deployment.
  • VMware ESXi 6.5.0 Update 2 in the 24×7 environment. Known as the production cluster.
  • VMware ESXi 6.5.0 Update 2 in the Lab environment. Known as the lab cluster.

You might ask… why don’t you upgrade the current vCenter Server? Good question! The machine has been converted/upgraded multiple times. It started out in life as a VMware vCenter 5.5 machine, that was on the Windows Server 2012 platform. So it was a good moment to start clean after this many years.

Share this:

Cannot Remove Content Library in VCSA 6.5 Update 1

Share this:

VMware VCSA 6.5 Content Library Issue

Today I was facing a VMware Content Library issue. I was removing a newly created Content Library in the vSphere Web Client but that resulted in a Java Runtime error.
The conclusion was that there was no way to remove the Content Library item.

The environment that I was troubleshooting has an external PSC and a vCenter server. The PSC and VC were running on the VMware VCSA 6.5 U1b release.
After some searching in the logs and googling, I came across the two following articles:
Link: Notes from MWhite – Can’t create a Content Library?
Link: VMware KB – OVF deployment fails after upgrading to vCenter Server Appliance 6.5 U1 (2151085)

Based on both information sources a couple of commands would fix the problem but there was also a note about installing patch VCSA 6.5 U1d.

I can confirm after upgrading the VSCA (PSC and VC) to version 6.5 U1e the problem was resolved.

Content Library Screenshots

Share this:

vCenter Server 6.5 U1 does not support deployment of OVF files

Today I was planning a NSX manager deployment in my Home Lab… But that turn out to be a problem, because I could not upload an OVF file in the vSphere Client and HTML5 Web Client. When looking in my Home Lab notes I realized the last time I deployed an OVF was when the VCSA was running 6.5 without update 1. I think something went wrong with updating to VCSA 6.5 update 1.

Problem:

Both webpages display the problem in a different way.

vSphere Client:

With the vSphere Client the following pop-up appears when trying to deploy an OVF file:  “This version of vCenter Server does not support Deploy OVF Template using this version of vSphere Web Client. To Deploy OVF Template, login with version 6.5.0.0 of vSphere Web Client”

vSpher Client - OVF Deployment
vSphere Client – OVF Deployment



HTML5 Web Client:

The HTML5 Web Client does not display any error at all. It just disables the option to deploy an OVF file.

HTML5 Web Client - Deployment not possible
HTML5 Web Client – Deployment not possible

Fix:

After some googling I found the following VMware KB article 2151085 (link). This turned out to be the solution.
1. Connect to the vCenter Server Appliance with an SSH session and root credentials.
2. Run this command to enable access the Bash shell:
shell.set –enabled true
3. Type shell and press Enter.
4. Navigate to /etc/vmware-content-library/config/ with this command:
cd /etc/vmware-content-library/config/
5. Create a backup of the ts-config.properties and ts-config.properties.rpmnew file with these commands:
cp ts-config.properties ts-config.properties.orig
cp ts-config.properties.rpmnew ts-config.properties.rpmnew.orig
6. Rename ts-config.properties.rpmnew to ts-config.properties.
mv ts-config.properties.rpmnew ts-config.properties
7. Restart the Content Library service:
service-control –stop vmware-content-library
service-control –start vmware-content-library
8. Refresh or close your browser and connect with one of the web interfaces.
